Capacitor Reference - Macintosh Quadra 630
All of the following are surface-mount electrolytic cans that need to be replaced.
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6.3v | 3 | Surface-Mount Electrolytic |
| 47uf 16v | 6 | Surface-Mount Electrolytic |

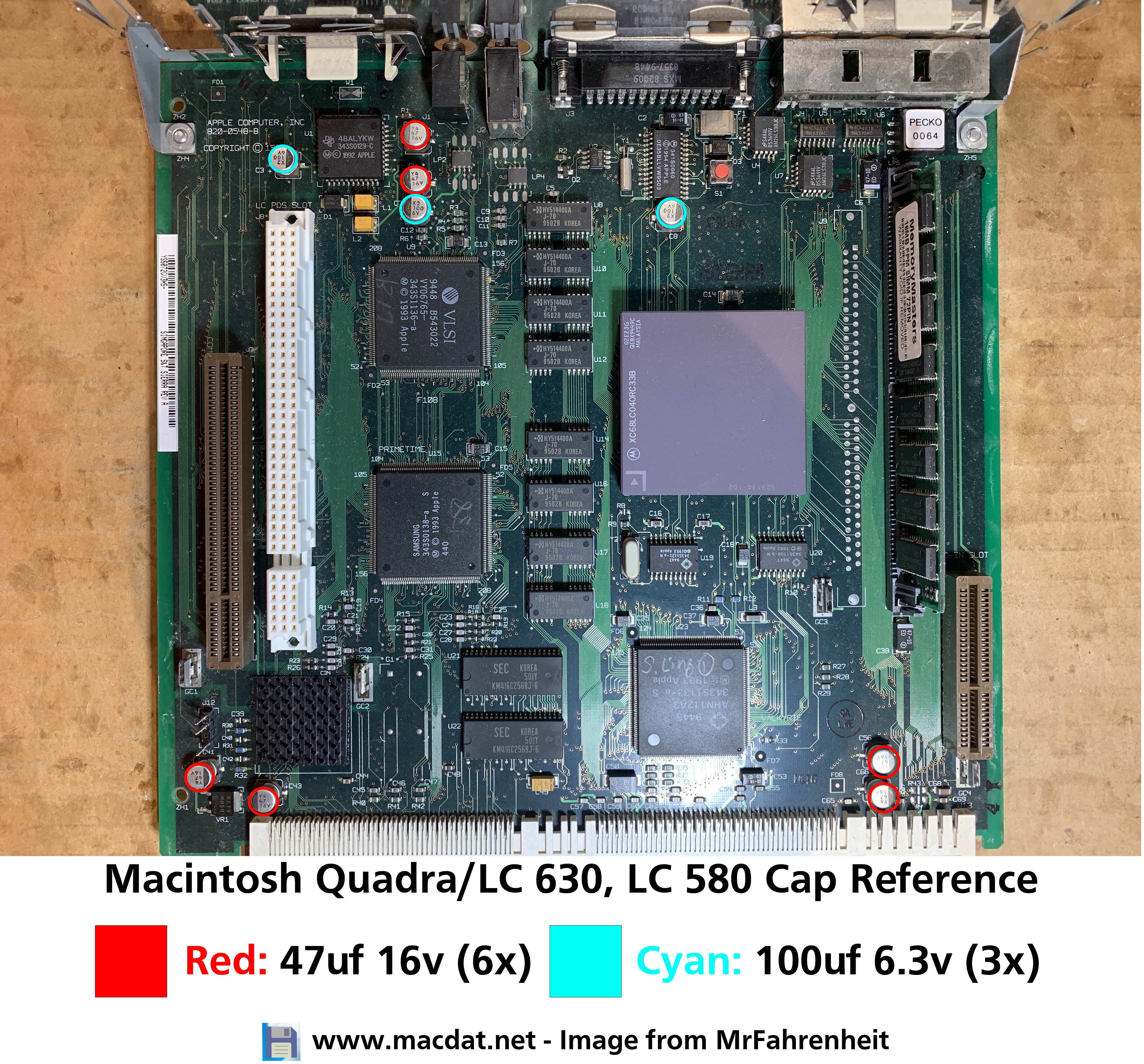

Reference Image
Click image below to view the full-resolution version.
