Capacitor Reference - Macintosh Quadra/Centris 610
All of the following are surface-mount electrolytic cans that need to be replaced.
Logic Board
Note: Other online sources say that these boards have 9 caps, not 10. All evidence I've seen, including this reference photo, says they have 10.
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 10 | Surface-Mount Electrolytic |

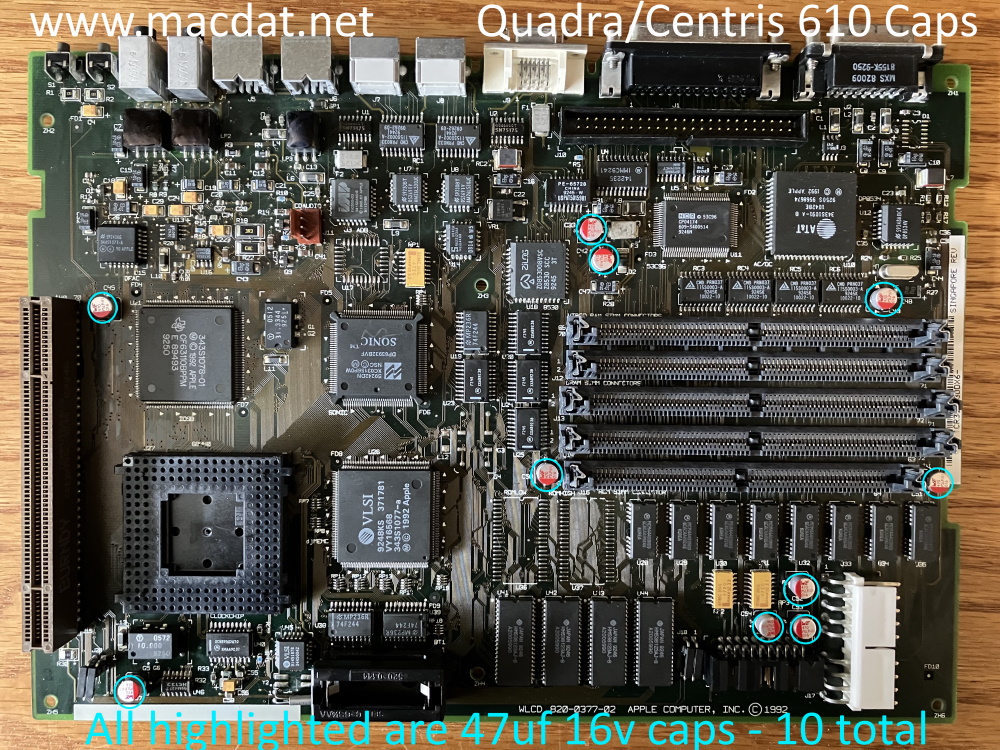

Reference Image
Provided by olePigeon from 68kMLA.org
