Capacitor Reference - Power Macintosh 8500
Logic Board
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 10 | Surface-Mount Electrolytic |
| 10uf 16v | 7 | Surface-Mount Electrolytic |
| 4.7uf 25v | 5 | Surface-Mount Electrolytic |

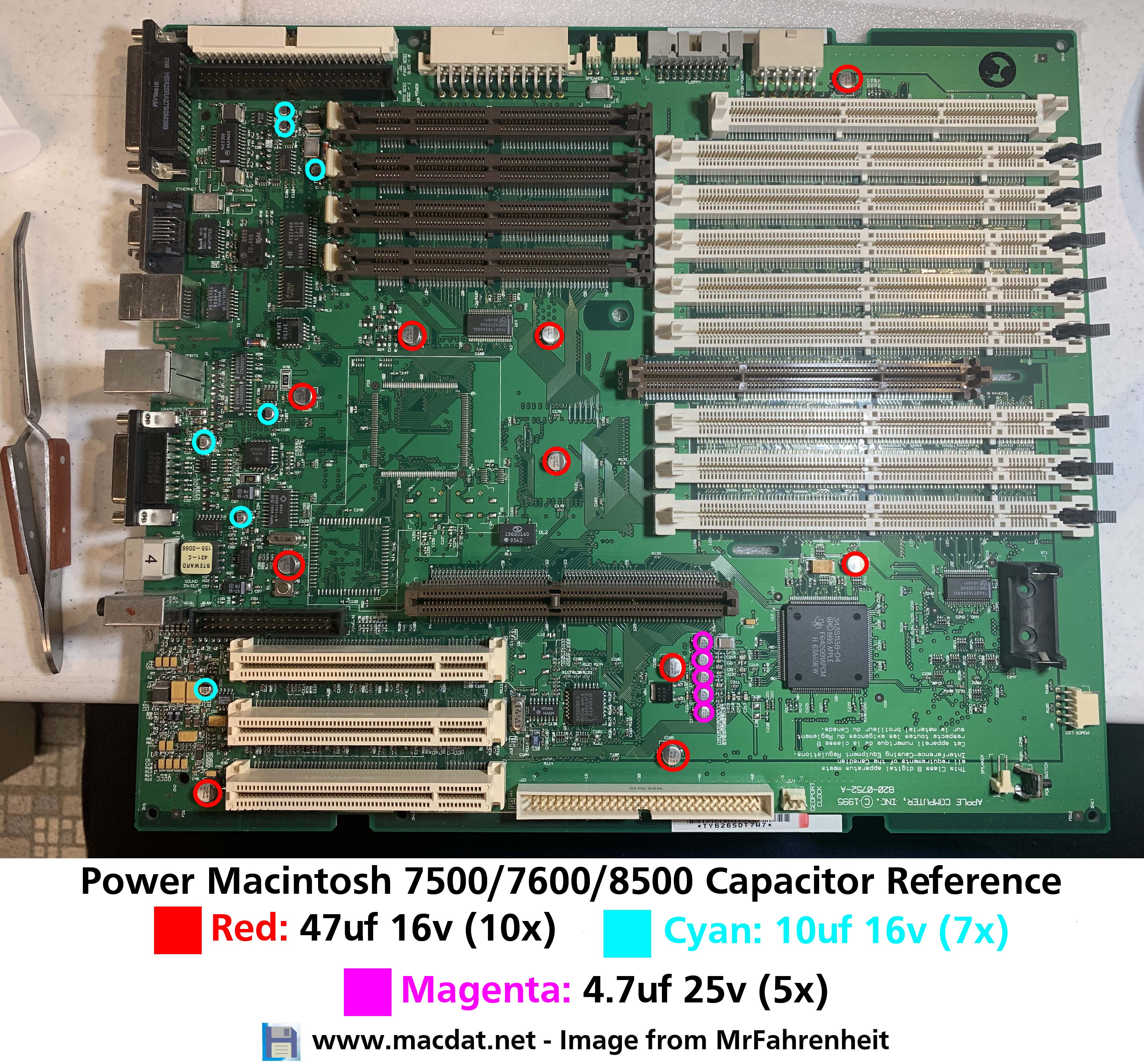

Reference Image
Click image below to view the full-resolution version.
