Capacitor Reference - Power Macintosh 7100
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6v | 1 | Surface-Mount Electrolytic |
| 47uf 16v | 25 | Surface-Mount Electrolytic |

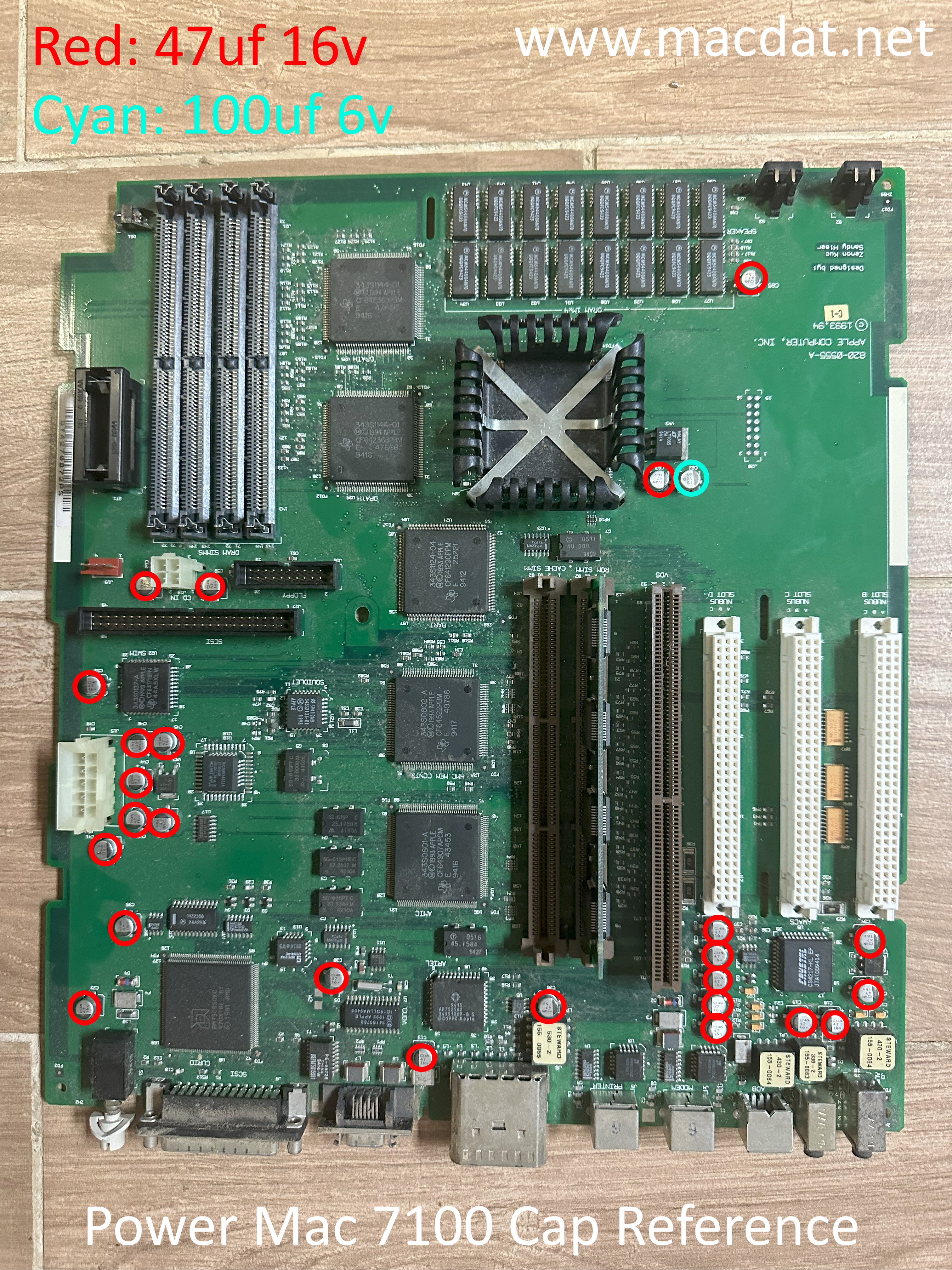

Reference Image - Logic Board
Click on the image below to view the full-size version of it.
| Value | Count | Type |
|---|---|---|
| 100uf 6v | 1 | Surface-Mount Electrolytic |
| 47uf 16v | 25 | Surface-Mount Electrolytic |
Click on the image below to view the full-size version of it.
