Capacitor Reference - Power Macintosh 6360
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6.3v | 4 | Surface Mount Electrolytic |
| 47uf 16v | 11 | Surface Mount Electrolytic |

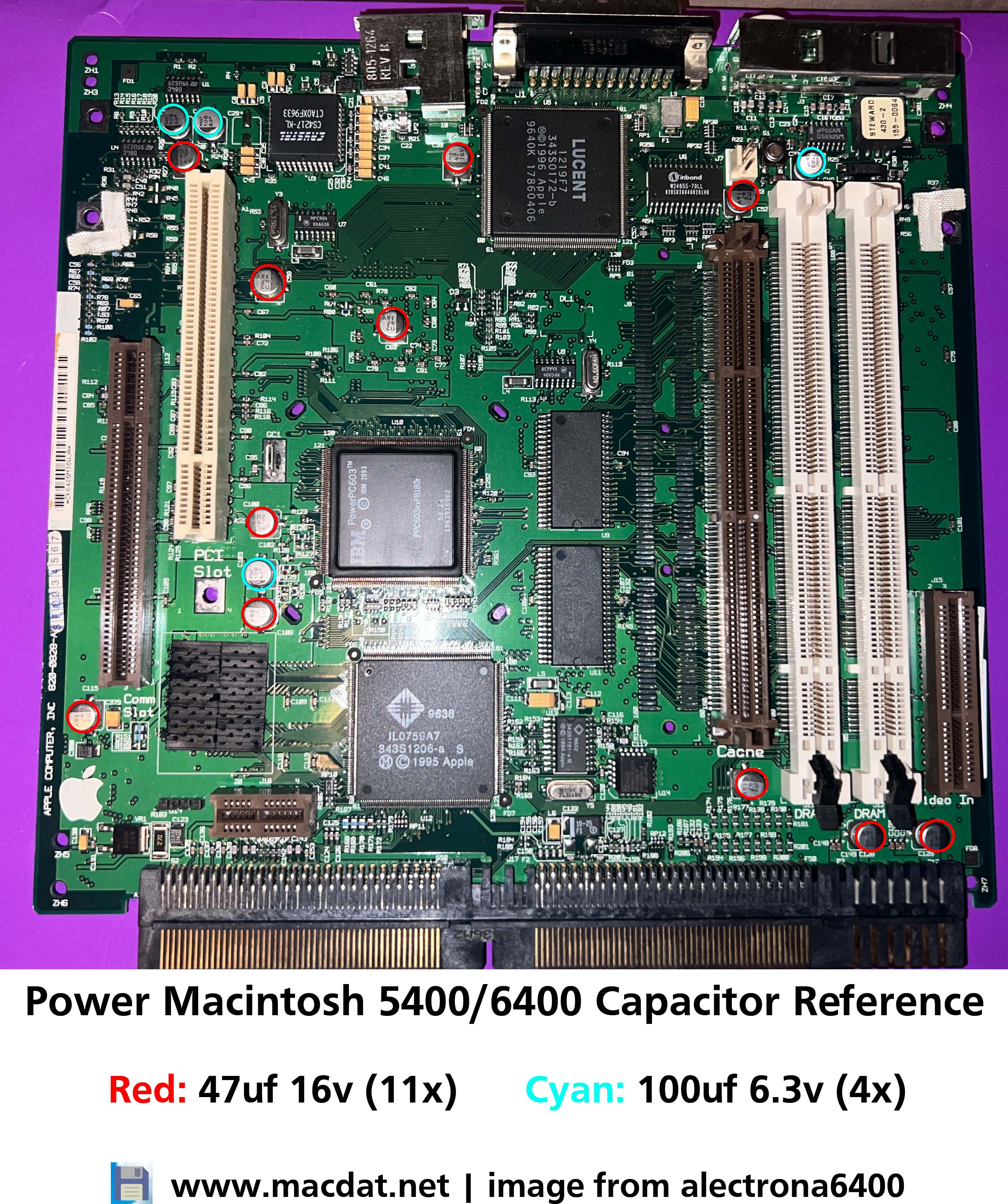

Reference Image
The image is labelled for the 5400 and 6400 - the 6360 uses the same logic board.
Click the image below to view the full-resolution version.
