Capacitor Reference - Power Macintosh 5400
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6.3v | 4 | Surface Mount Electrolytic |
| 47uf 16v | 11 | Surface Mount Electrolytic |

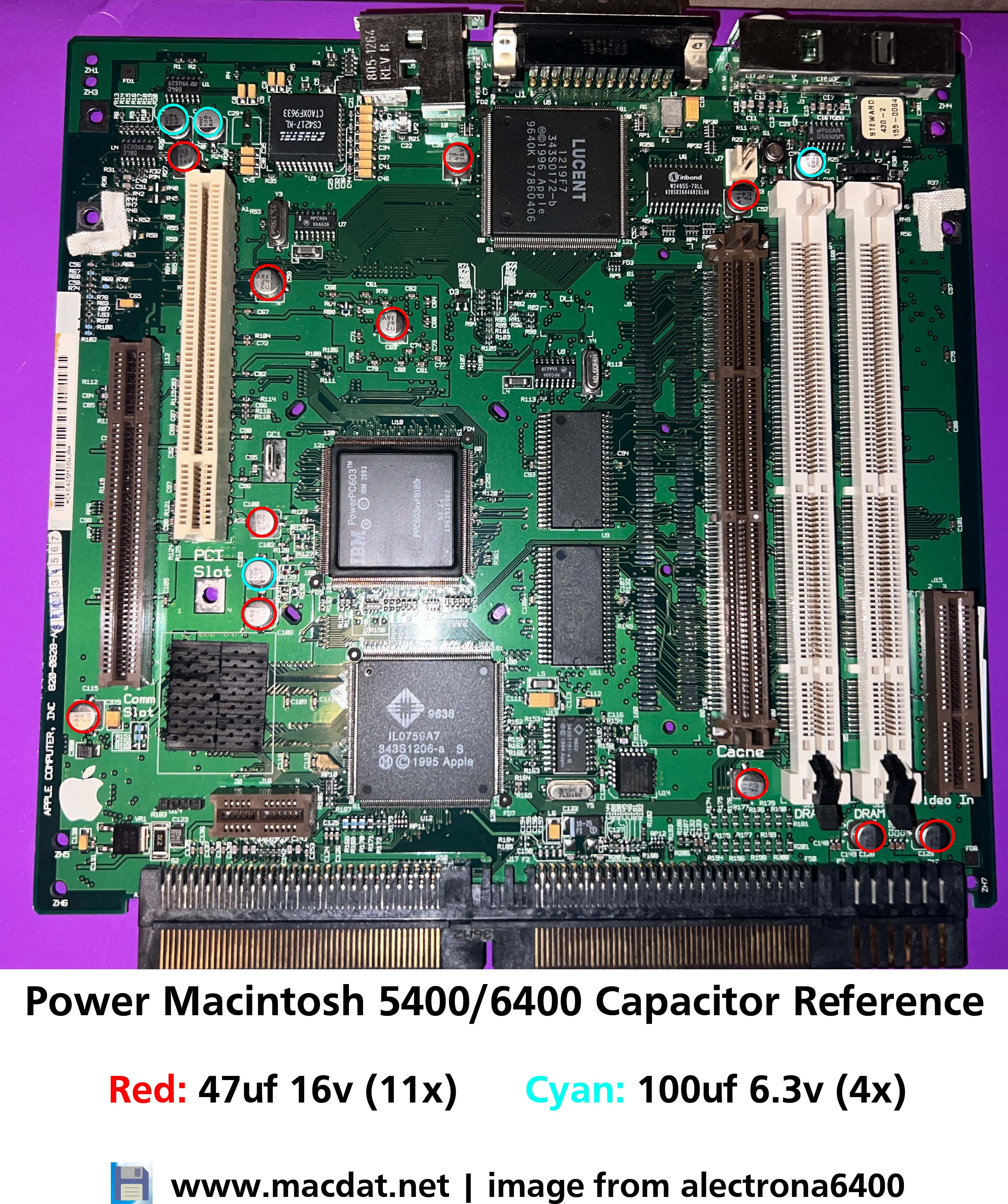

Reference Image
Click image below to view the full-resolution version.
| Value | Count | Type |
|---|---|---|
| 100uf 6.3v | 4 | Surface Mount Electrolytic |
| 47uf 16v | 11 | Surface Mount Electrolytic |
Click image below to view the full-resolution version.
