Capacitor Reference - PowerBook Duo MiniDock
The Duo MiniDock actually does have four leaky caps inside that need replacement! I would highly recommend recapping one of these, even if yours is working fine.
Logic Board
| Value | Count | Type | Diameter |
|---|---|---|---|
| 330uf 16v | 2 | Surface-Mount Electrolytic | 10mm |
| 100uf 35v | 2 | Surface-Mount Electrolytic | 10mm |

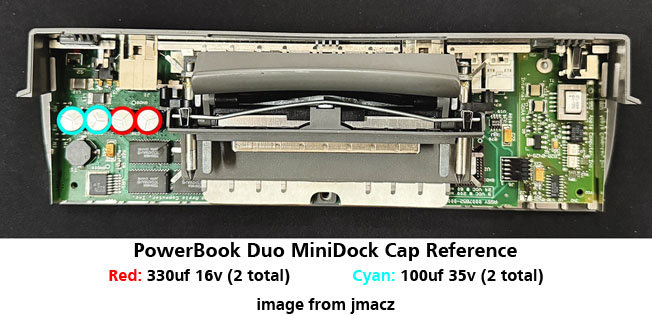

Reference Image
Click on the image to view the full-size version.
