Capacitor Reference - Performa 6300
Info may or may not match other 6300 series systems - I need to get info on that, confirmed 100% for the Performa 6300.
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6v | 3 | Surface-Mount Electrolytic |
| 47uf 16v | 7 | Surface-Mount Electrolytic |
| 22uf 25v | 1 | Surface-Mount Electrolytic |

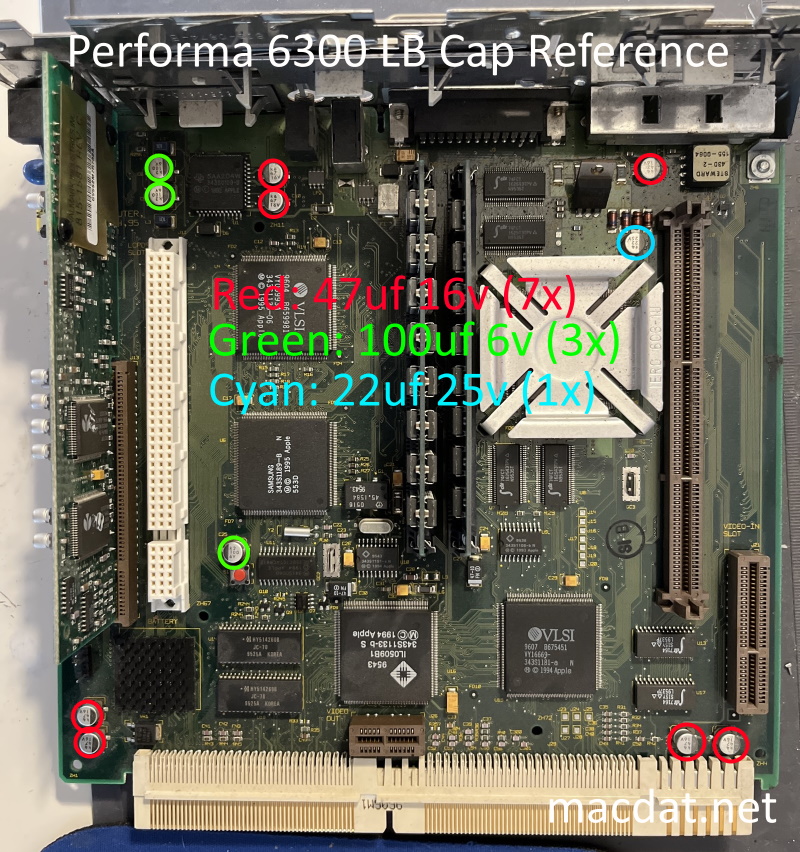

Reference Image
Providedby mloret.
