Capacitor Reference - Apple Interactive Television Box (STB3)
The Apple Set Top Box is an unreleased project by Apple. There are a decent number of prototypes floating around nowadays, and I was able to get cap reference values and a logic board photo for the STB3 revision from jajan547 on 68kMLA.org.
These have 33 caps total on the logic board, so if you have one, you're going to want to get them changed. They're from the era where you can bet on finding leakage.
Note that since this is a prototype, it's possible that other STB3s will have differences. Check your board to make sure yours is the same.
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 10v | 1 | Surface-Mount Electrolytic |
| 100uf 6.3v | 2 | Surface-Mount Electrolytic |
| 47uf 16v | 11 | Surface-Mount Electrolytic |
| 10uf 16v | 17 | Surface-Mount Electrolytic |

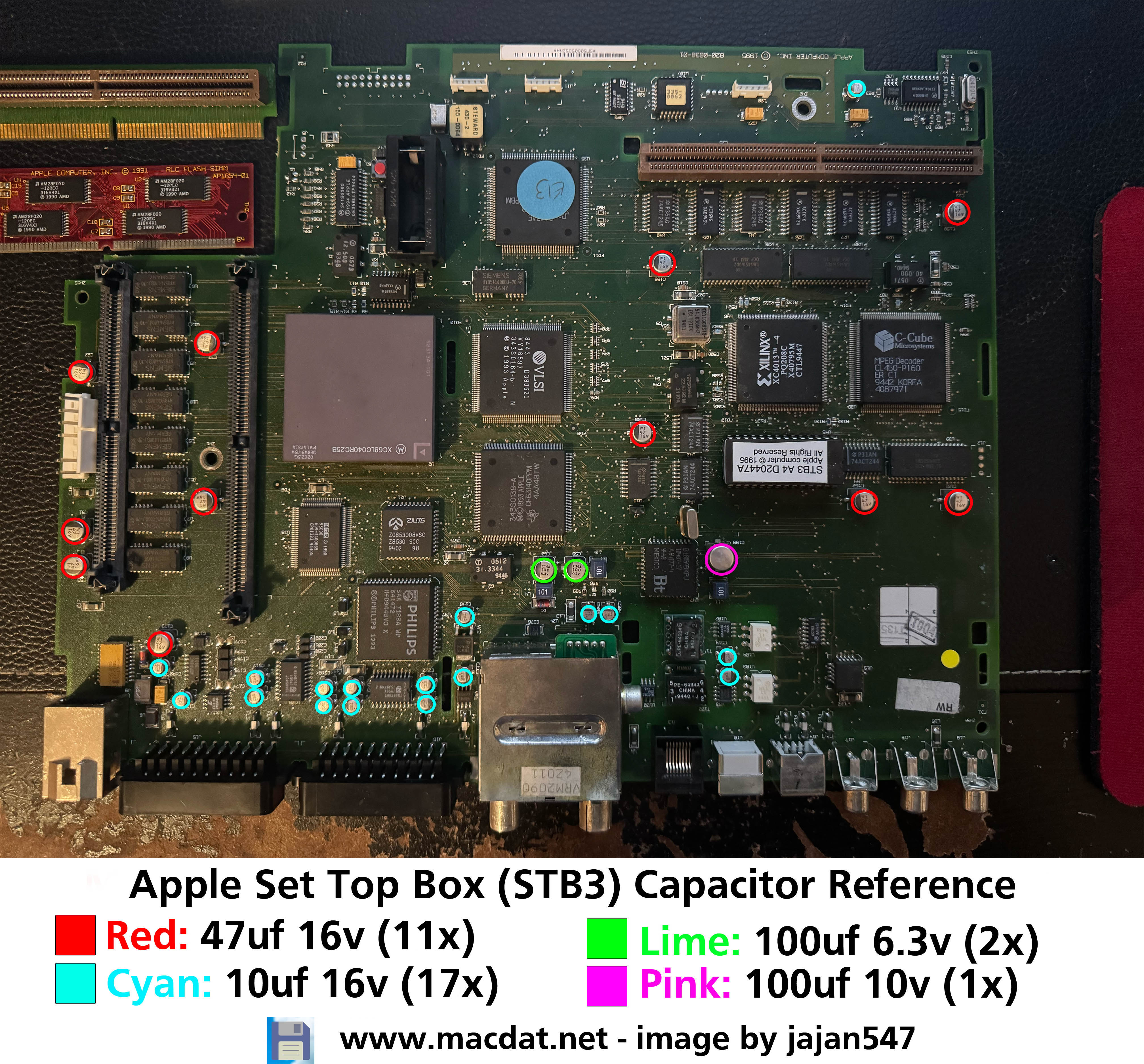

Reference Image
Click image below to view the full-resolution version.
