Capacitor Reference - Macintosh IIvx
The logic board in the IIvx must be recapped.
Logic Board
| Value | Count | Type |
|---|---|---|
| 220uf 16v | 2 | Axial Electrolytic |
| 47uf 16v | 6 | Surface-Mount Electrolytic |

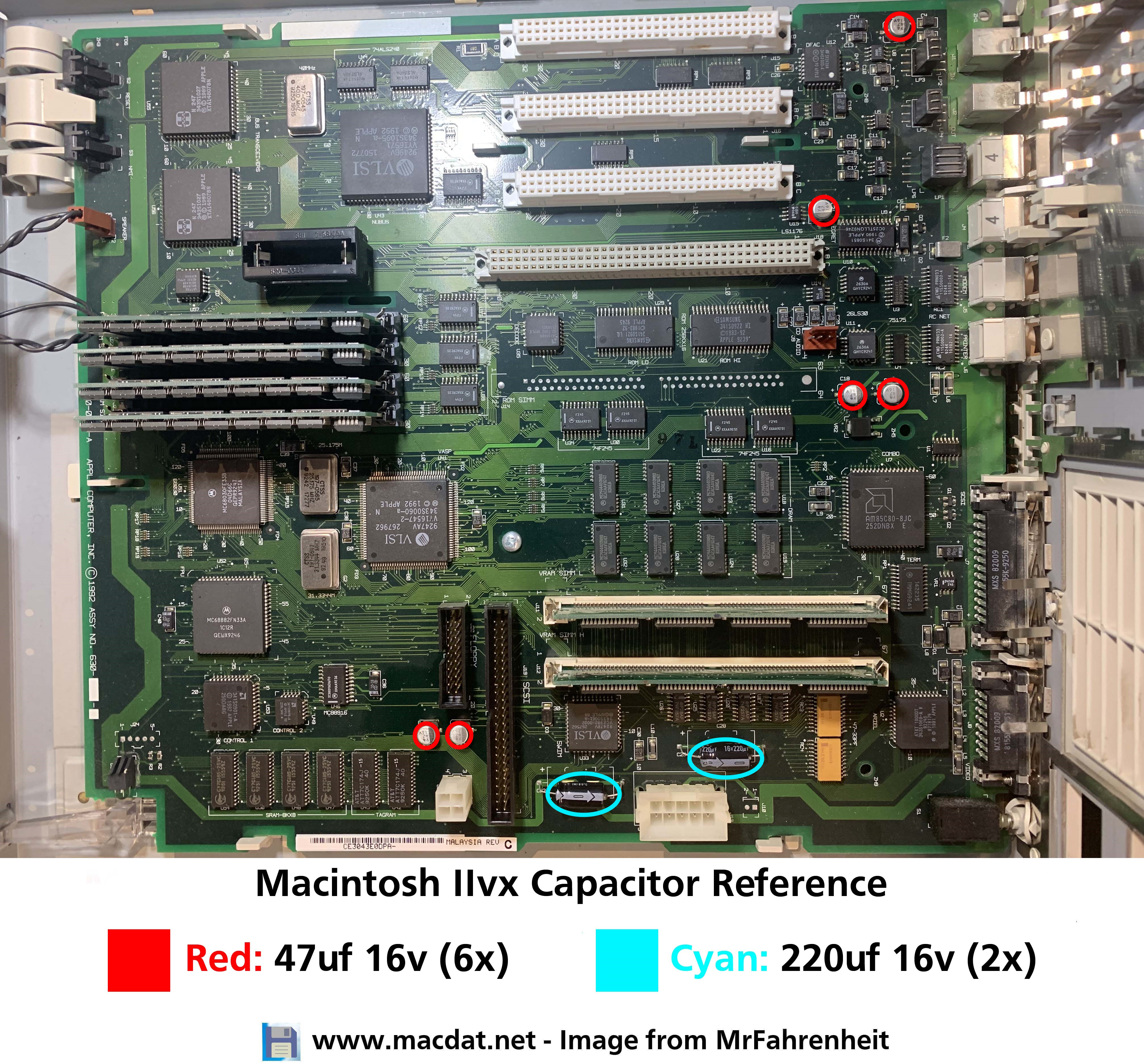

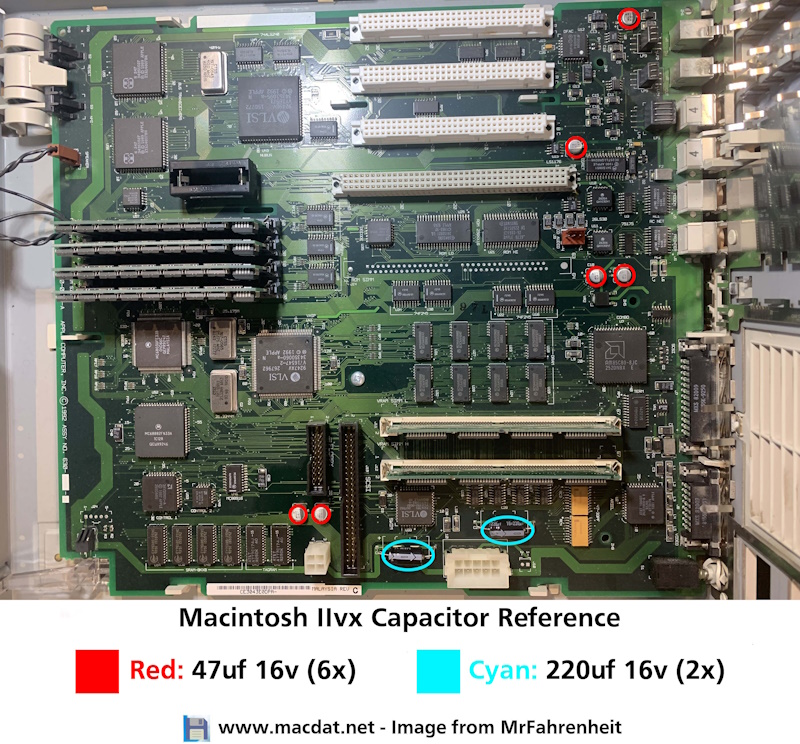

Reference Image
Click image below to view the full-resolution version.
