Capacitor Reference - Macintosh IIcx
The logic board in the IIcx must be recapped.
Logic Board
Note: The Axial caps may actually be 25v rated on some boards. At least, that's the case on the IIci, and the two are pretty similar. See the IIci page for more info.
| Value | Count | Type |
|---|---|---|
| 470uf 16v | 3 | Axial Electrolytic |
| 220uf 16v | 1 | Axial Electrolytic |
| 47uf 16v | 9 | Surface-Mount Electrolytic |
| 10uf 16v | 2 | Surface-Mount Electrolytic |

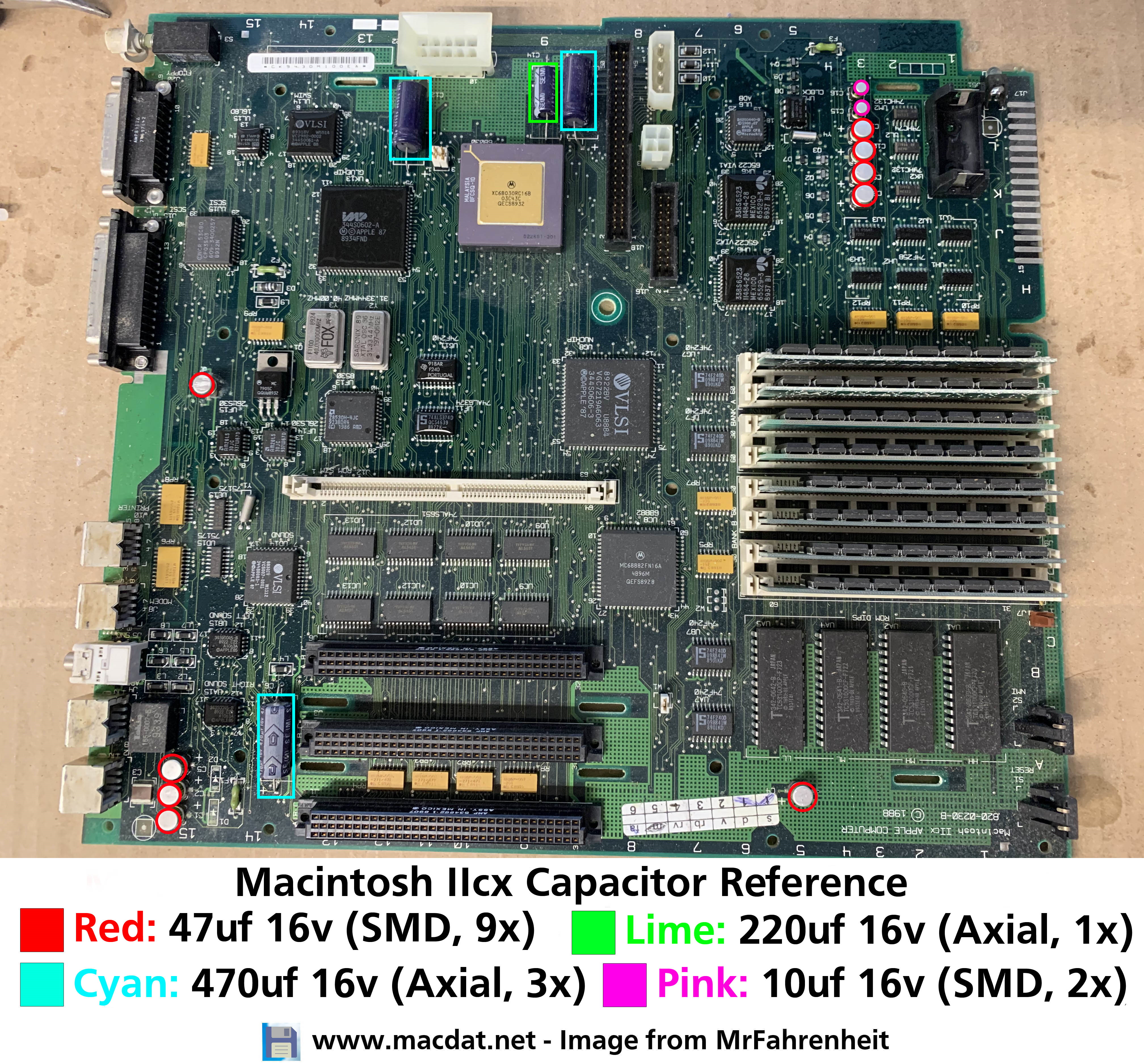

Reference Image
