Capacitor Reference - Macintosh IIci
The logic board in the IIci must be recapped.
Logic Board
| Value | Count | Type |
|---|---|---|
| 470uf 25v | 3 | Axial Electrolytic |
| 220uf 25v | 1 | Axial Electrolytic |
| 47uf 16v | 8 | Surface-Mount Electrolytic |
| 10uf 16v | 2 | Surface-Mount Electrolytic |

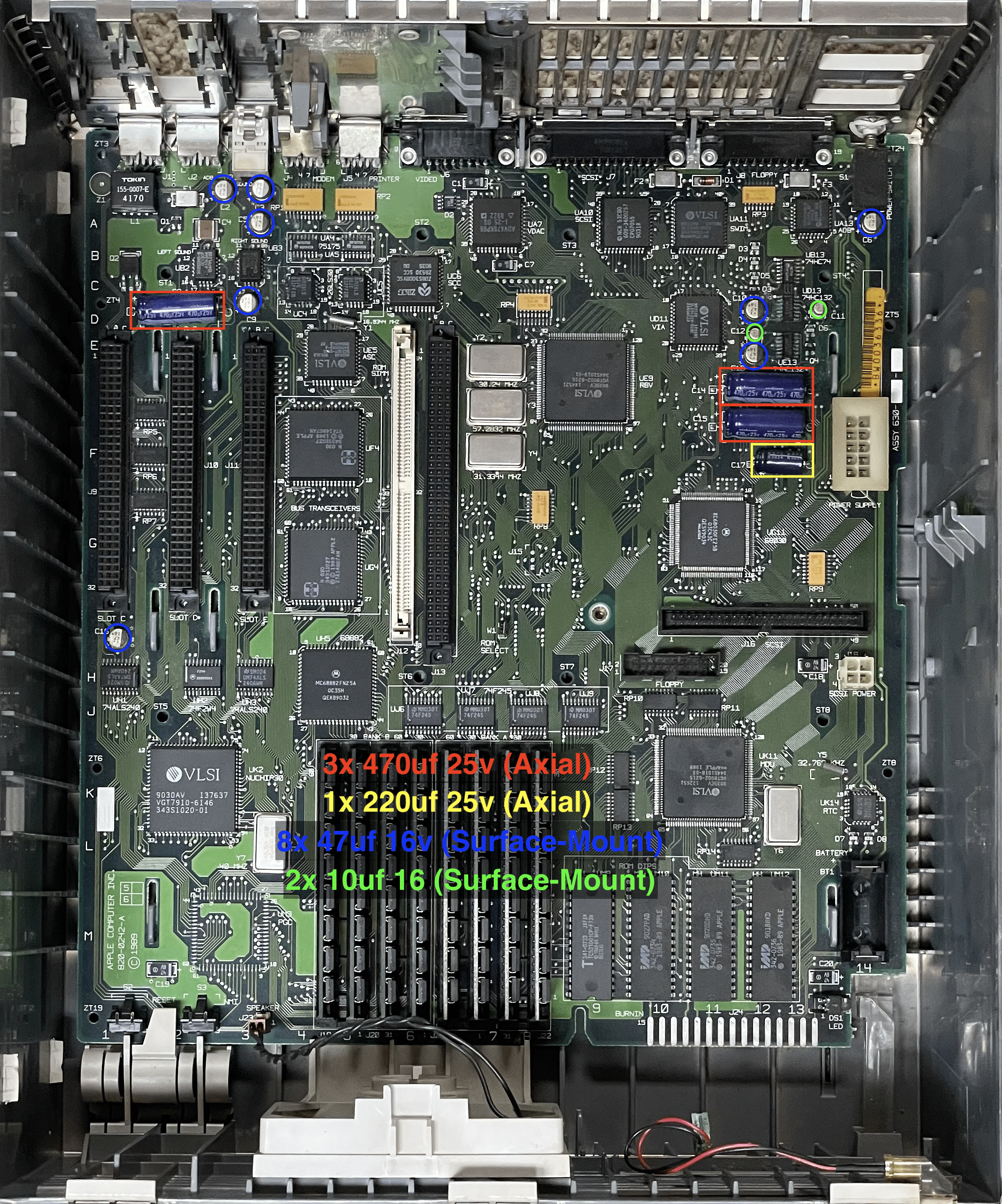

Reference Image
Click image below to view the full-resolution version.
