Capacitor Reference - Macintosh SE/SE FDHD/SE SuperDrive
The original Macintosh SE uses all axial capacitors instead of the surface mount caps in later Macs. These axial caps rarely fail, but they're getting old enough that it's still good to replace them eventually. Here's the reference info should you need it.
Logic Board
| Value | Count | Type |
|---|---|---|
| 33uf 16v | 10 | Axial Electrolytic |
| 1uf 50v | 1 | Axial Electrolytic |

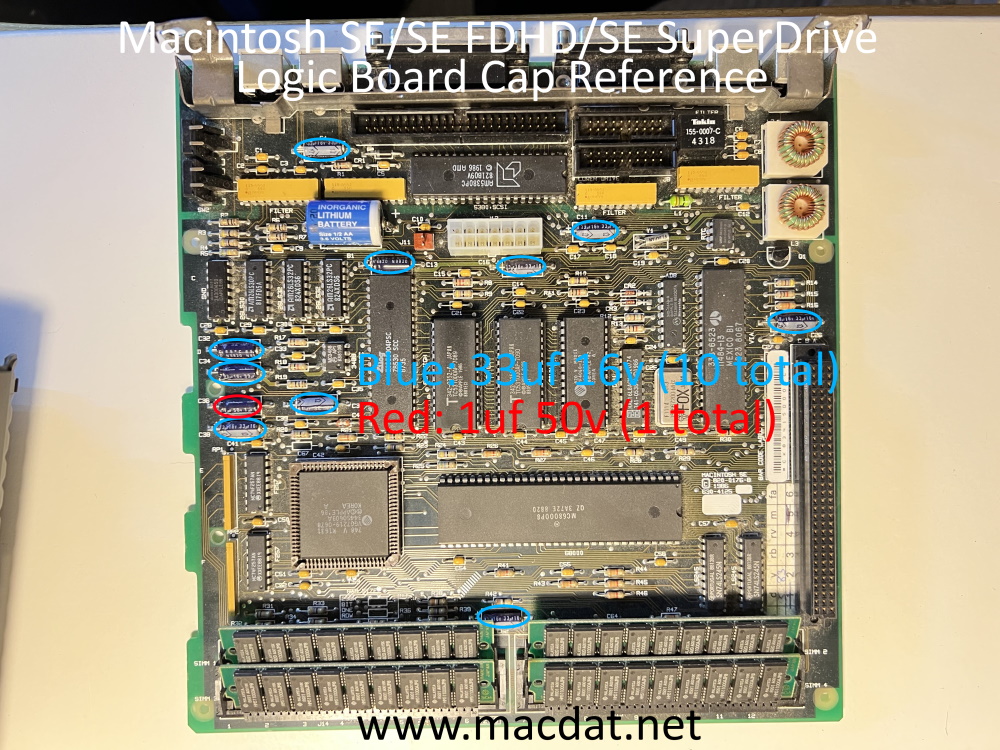

Reference Image
Provided by Durosity on 68kmla.org
