Capacitor Reference - Macintosh Color Classic
These should be a recap on sight.
Logic Board
| Value | Count | Type |
|---|---|---|
| 100uf 6.3v | 2 | Surface-Mount Electrolytic |
| 47uf 16v | 6 | Surface-Mount Electrolytic |
| 10uf 16v | 1 | Surface-Mount Electrolytic |
Reference Image
Not available.
Microphone Board
These seem to not be known about by just about anybody, but there are two surface-mount caps on the Color Classic's Microphone PCB!
| Value | Count | Type |
|---|---|---|
| 4.7uf 25v | 2 | Surface-Mount Electrolytic |

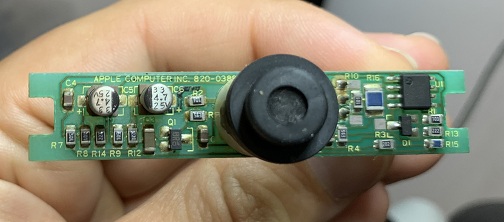

Reference Image
Provided by @joshc on 68kMLA.org
