Capacitor Reference - Macintosh Classic
The Macintosh Classic should be a recap on sight.
Note: If replacing the surface-mount capacitors with tantalum caps, purchase 25V rated caps instead of 16V for the 47uf caps! See this thread on 68kMLA for more info on why.
Logic Board
| Value | Count | Type |
|---|---|---|
| 47uf 16v | 7 | Surface-Mount Electrolytic |
| 1uf 50v | 1 | Surface-Mount Electrolytic |

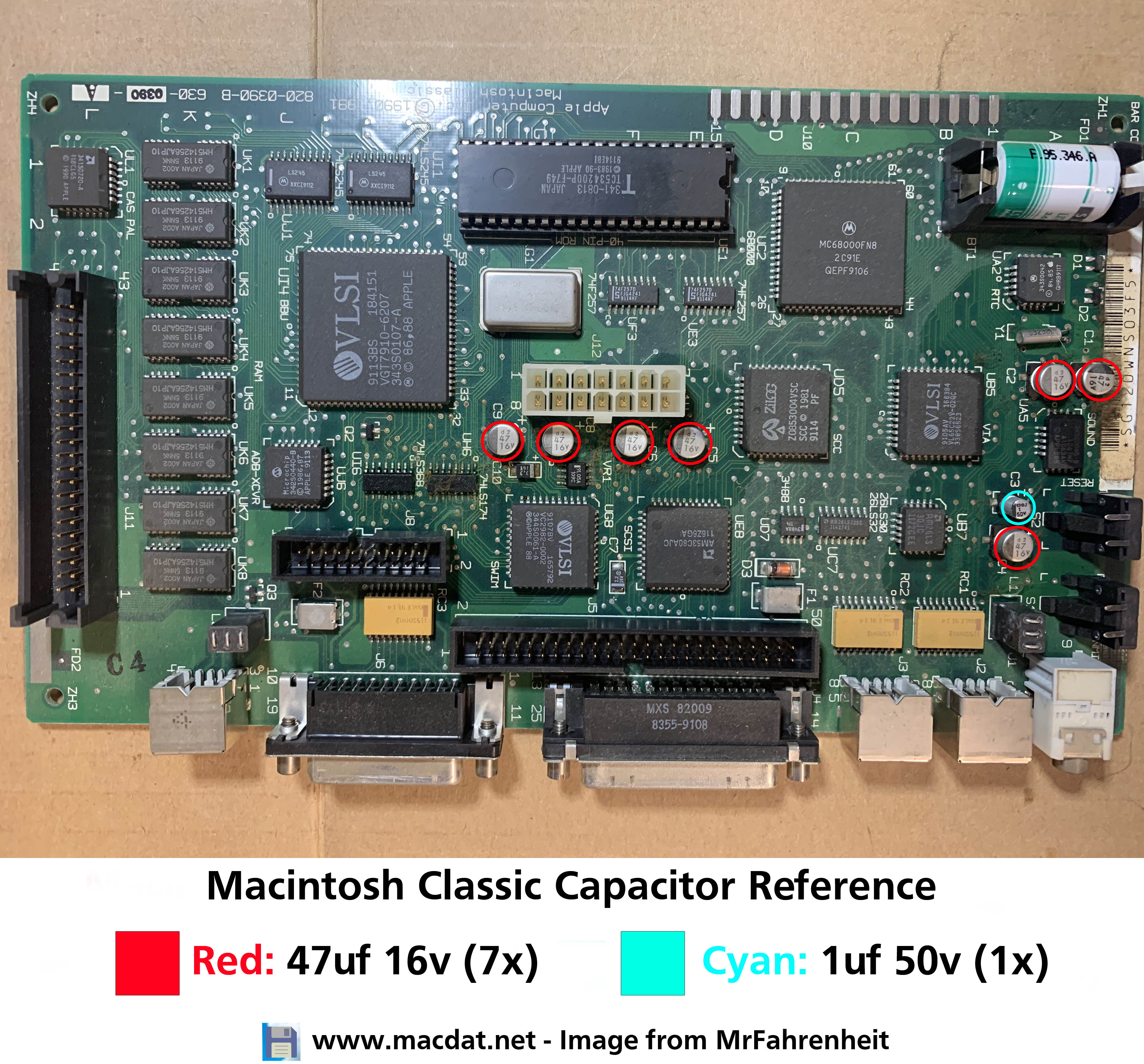

Reference Image
Click image below to view the full-resolution version.
